D24L 2U 7-Drive Dual Xeon Chassis |
|
|
|
|
 |
- Strong construction using aluminum and steel
- American Designed, American Manufactured
- Cooling for 15,000RPM drives!
- Up to seven drives possible*
- Up to 4 removable 1" HDDs (IDE, SATA and/or SCA*)
- Up to 2 removable 1.6" HDDs (IDE and/or SCA*)
- 300W to 460W ATX 100,000hr MTBF AC power options
- 300W 48VDC 100,000hr MTBF power-supply option
- Also has a 5¼" CD bay and a 3½" FDD bay
- For large motherboards including Dual P4-XEON
- Up to three 32- or 64-bit PCI slots (optional)
- Includes three 100,000hr-MTBF 80mm fans
- Optional door with air filter available
- Optional ball-bearing slide rails available
- 2 rack-units high (actually 3.43", EIA std.)
- 3½"H x 19"W x 22½"D
- Weight: Approx. 23 lbs.
- Colors: Black standard, others special order
- Order number: 90079J
|
|

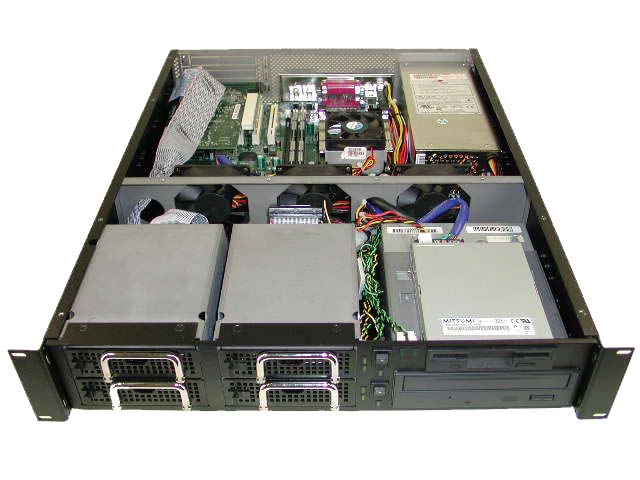

Interior Photo - Front Top |
|
|
|
|
|

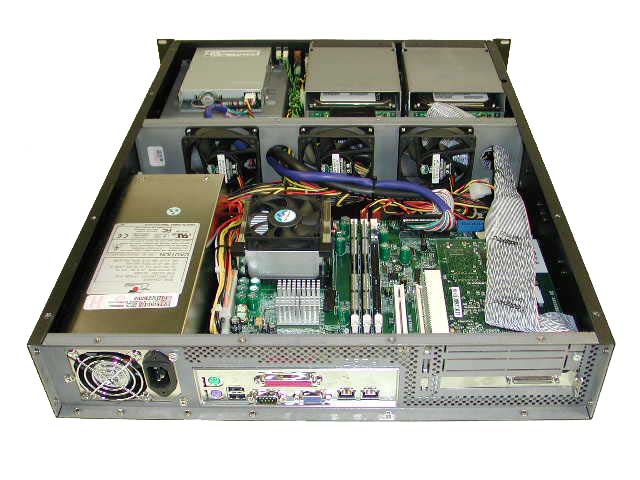

Interior Photo - Rear Top |
|
|
|
* Interior photos
show a 400W power-supply and a large, dual-processor motherboard. Notice the optional two-slot 64-bit PCI riser card. The removable hard drives are on individual trays and plug into optional IDE, SCSI-SCA or FC adapters (chosen at configuration time) mounted in the two drive cage assemblies. Seven drives are achieved by using a combo CD/FDD in the 5¼" bay and a fifth HDD in the 3½" bay above it. |
|
|
|
|
|
Choices: |
|
|
|
- 460W 2U 100,000hr-MTBF power supply (600128)
- 300W 2U 100,000hr-MTBF power supply (60012A)
- 300W 2U 100,000hr-MTBF power supply w/PFC(600122)
- 300W 48VDC 2U 100,000hr-MTBF power supply(60011P)
- Two SCA drives, mounting kit (trays and interfaces) (90073M)
- Two IDE drives, mounting kit (trays and interfaces) (90073N)
- Two SATA drives, mounting kit (trays and interfaces) (90073V)
- Two drives, one SCA + one IDE, mounting kit (trays, interfaces) (90073J)
- Single drive, IDE, mounting kit (tray and interface) (90073K)
- Single drive, SCA, mounting kit (tray and interface) (90073L)
- Single drive, SATA, mounting kit (tray and interface) (90073U)
- Fixed-mount (front only) 2U ear kit (900711)
- Fixed-mount (4-corner) 2U rail kit (900712)
- Slide mount (4-corner) 2U Ball-bearing kit (90070L)
|
Options: |
|
| NOTE: only one riser may be used per D24 system! |
| Riser choice depends upon desired card(s) and motherboard. |
- Single-slot 32-bit riser card (900882)
- Single-slot 5-volt 64-bit riser card (90079E)
- Single-slot 3.3-volt 64-bit riser card (90079G)
- Two-slot 64-bit riser for 3.3V cards(900647)
- Two-slot 64-bit riser for 5V cards(90064C)
- Three-slot 64-bit riser for E7500 chipsets(900644)
- Three-slot 64-bit riser for GC-LE chipsets(900645)
- 24"/26"/28" non-BB slides with extensions (900891,2,3 plus 90089A)
|
