D12XL / D13XL 1U Chassis

• Strong, lightweight using aluminum and steel
• Stretched version, fits dual-Xeon mainboards
• Active-cooling (not passive!) for CPUs and HDDs
• Up to 3 removable HDDs, IDE or SCA (D13XL)
• Choose optional slot: AGP/AGP-pro or 64/32-bit PCI
• Optional CD and floppy drives (D12XL)
• Accepts 400W dual power-supply, 100,000 hr MTBF
• Cooling designed for 15,000 rpm HDDs
• Includes six 100,000hr-MTBF cooling fans (D13XL)
• Optional door available
• Optional ball-bearing slide rails available
• 1 rack-unit high (actually 1.73", EIA std.)
• 1.73"H x 19"W x 23¼"D
• Weight: Approx. 14 lbs.
• Colors: Black standard, others special order
• Order number: 90070I(D12XL) or 90070H(D13XL)

Active-cooling for both CPUs and HDDs
provides   better   cooling   and  enables
testing,  maintenance  and  observation
even while the top cover is off!
(Press links below to see photos.)

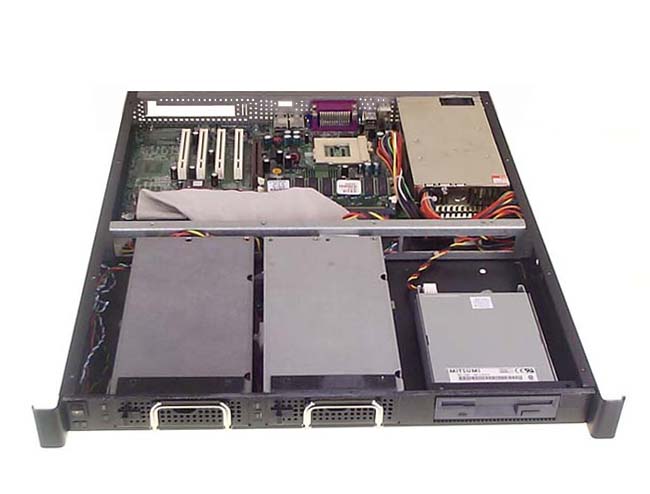

Front view - Two HDDs plus CD/FD

Front view - Three HDDs

Interior photos show WTX (12in. x 13in.) motherboard with dual Xeon CPUs. Note the space for riser-card and card-bracket on back-panel.

Front view - Dual-processor

Rear view - Dual-processor

Choices:

• 350W 100,000hr-MTBF dual-Xeon power-supply (60011R)
• 400W 100,000hr-MTBF dual-Xeon power-supply (60011S)
• Low-profile Xeon CPU cooler (900416)
• CDrom and floppy kit (both Teac) (90073E)
• CDrom and Floppy kit (Delta/Mitsubishi) (90073F)
• Floppy only(no CD) kit (includes black FDD) (90070Y)
• No FDD, no CDROM (hole filler) (980173)
• SCA receiver for 1 removable SCA HDD (90070W)(D12XL max=2, D13XL max=3)
• IDE receiver for 1 removable IDE HDD (90070Z)(D12XL max=2, D13XL max=3)
• SATA receiver for 1 removable Serial-ATA drive(D12XL max=2, D13XL max=3)(90073T)
• Fixed-mount (front only) 1U ear kit (900713)
• Fixed-mount (4-corner) 1U rail kit (90070T)
• Slide mount (4-corner) 1U Ball-bearing kit (90070X)

Options:

• 32-bit riser card (900799)
• 64-bit 5-volt riser card (90079E)
• 64-bit 3.3-volt riser card (90079G)
• Door, full-width, vented (90079R)
