D12L / D13L 1U Chassis

• Strong, lightweight using aluminum and steel
• Stretched ver. of D12, fits dual-PIII mainboards
• Up to 3 removable HDDs, IDE or SCA (D13L)
• Active-cooling (not passive!) for CPUs and HDDs
• Rear panel provides 1 slot: 64/32-bit PCI
• Optional CD+FDD or FDD only (D12L)
• 230W, 250W, or 300W power, 100,000 hr MTBF
• 180W 48VDC power-supply option (P-III only)
• Cooling designed for 15,000 rpm HDDs
• Includes six 100,000hr-MTBF cooling fans (D13L)
• Optional door available
• Optional ball-bearing slide rails available
• 1 rack-unit high (actually 1.73", EIA std.)
• 1.73"H x 19"W x 23¼"D
• Weight: Approx. 14 lbs.
• Colors: Black standard, others special order
• Order number: 90070S(D12L) or 90070K(D13L)

Active-cooling for both CPUs and HDDs
provides   better   cooling  and  enables
testing,  maintenance  and  observation
even while the top cover is off!
(Press links below to see photos.)

Front view - Single processor

Rear view - Single-processor

Interior photos show full-size ATX motherboards, single and dual P-III CPU. Note the space for riser-card and PCI card on back-panel. A standard FDD is shown, but optional CD/FDD combo is available.The rear view of the dual-PIII shows the optional ball-bearing slides attached, and a rear-panel, external SCSI connector from the motherboard's built-in SCSI controller.

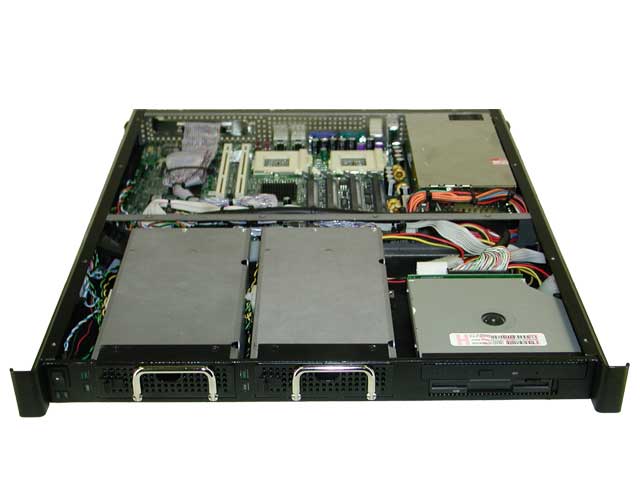

Front view - Dual-processor

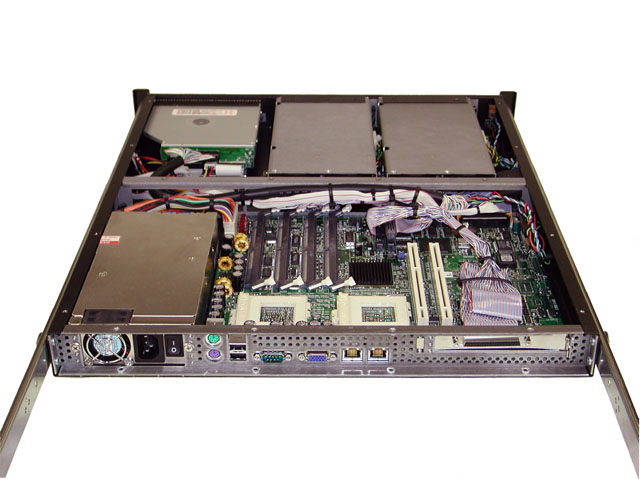

Rear view - Dual-processor

Choices:

• 230W 100,000hr-MTBF power-supply (60011L)
• 250W 100,000hr-MTBF power-supply (600119)
• 300W 100,000hr-MTBF power-supply (60011H)
• 180W 48VDC power-supply (not for P-IV)(60011N)
• Low-profile PIII CPU cooler for less than 1GHz (900412)
• Low-profile PIII CPU cooler for 1GHz up (900414)
• Low-profile P-IV CPU cooler (900415)
• CDrom and floppy kit (both Teac) (90073E)
• CDrom and Floppy kit (Delta/Mitsubishi) (90073F)
• Floppy only(no CD) kit (includes black FDD) (90070Y)
• No FDD, no CDROM (hole filler) (980173)
• SCA receiver for 1 removable SCA HDD (90070W)(D12L max=2, D13L max=3)
• IDE receiver for 1 removable IDE HDD (90070Z)(D12L max=2, D13L max=3)
• SATA receiver for one removable Serial-ATA drive(D12L max=2, D13L max=3)(90073T)
• Fixed-mount (front only) 1U ear kit (900713)
• Fixed-mount (4-corner) 1U rail kit (90070T)
• Slide mount (4-corner) 1U Ball-bearing kit (90070X)

Options:

• 32-bit riser card (900882)
• 64-bit 5-volt riser card (90079E)
• 64-bit 3.3-volt riser card (90079G)
• Door, full-width, vented (90079R)
