D10XXL 1U Dual-Xeon Chassis

• Strong and lightweight using aluminum and steel
• American Made
• Designed for WTX motherboards
• Fits most Dual-Xeon motherboards
• Drives: Two fixed HDDs, plus CD/FD
• Optional standard 1.44 FDD or CD/FDD combo
• Has six high-velocity, ball-bearing cooling fans
• Takes 350W or 400W power-supply
• Optional riser/PCI slot (32-bit or 64-bit)
• Optional door available
• Optional ball-bearing slide rails available
• 1 rack-unit high (actually 1.73", EIA std.)
• 1.73"H x 19"W x 21¼"D
• Weight: Approx. 12 lbs.
• Colors: Black standard, others special order
• Order number: 90079W

Active-cooling for both HDDs and CPUs
provides   better   cooling   and  enables
testing,  maintenance  and  observation
even while the top cover is off!
(Press links below to see photos.)

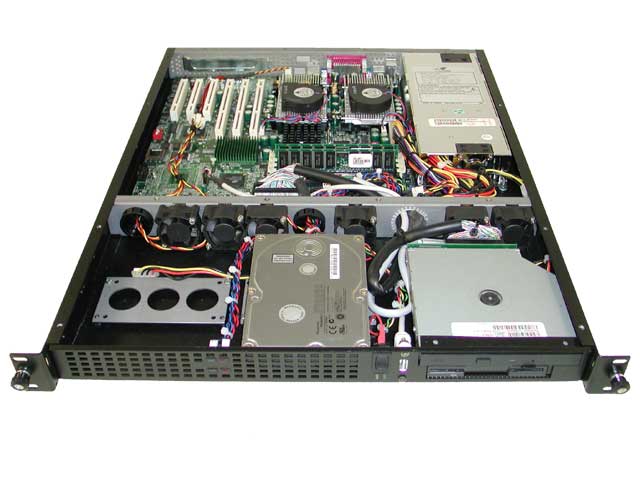

Interior Photo - Dual Xeon

Interior photos show a SuperMicro dual Xeon motherboard with the CPUs and low-profile coolers installed. This is one of the lowest-cost dual-XEON configurations possible. Note the available position for a riser-card (32- or 64-bit,) depending on motherboard.

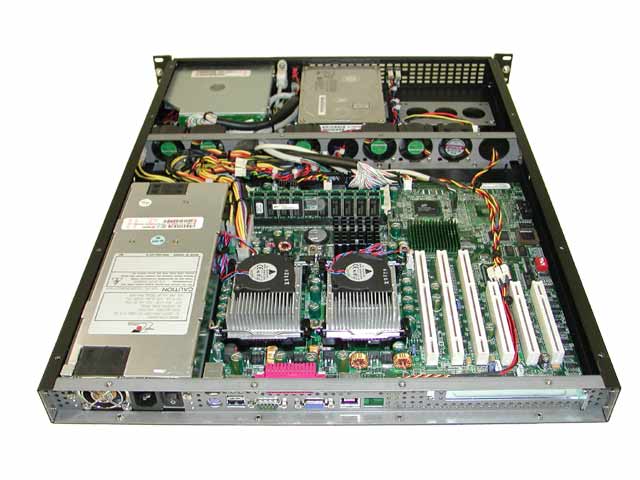

Interior Photo - Top Rear

Choices:

• 350W 100,000hr-MTBF power-supply (60011R)
• 400W 100,000hr-MTBF power-supply (60011S)
• Low-profile Xeon CPU active copper cooler (900416)
• CDrom and floppy kit (both Teac) (90073E)
• CDrom and Floppy kit (Delta/Mitsubishi) (90073F)
• Floppy only(no CD) kit (includes black FDD) (90070Y)
• No FDD, no CDROM (hole filler) (980173)
• Fixed-mount (front only) 1U ear kit (900713)
• Fixed-mount (4-corner) 1U rail kit (90070T)
• Slide mount (4-corner) 1U Ball-bearing kit (90070X)

Options:

• 32-bit riser card (900882)
• 64-bit 5-volt riser card (90079E)
• 64-bit 3.3-volt riser card (90079G)
• Door, full-width, vented (90079R)
