1U "D10" Rackmount Chassis

• Strong, lightweight aluminum/steel construction
• American designed, American manufactured
• Full-length PCI-card slot
• One or two internal HDDs
• CDROM and floppy drives optional
• 180W to 250W power-supply options
• 180W DC (48V) power-supply option
• Accepts most full-sized ATX motherboards
• NEW! Optional LCD readout for TCP/IP addresses
• Optional door available
• Includes two 100,000hr-MTBF cooling fans
• Optional ball-bearing slide rails available
• 1 rack-unit high (actually 1.73", EIA std.)
• 1.73"H x 19"W x 17½"D
• Weight: Approx. 11 lbs.
• Colors: Black standard, others special order
• Order number: 90070U

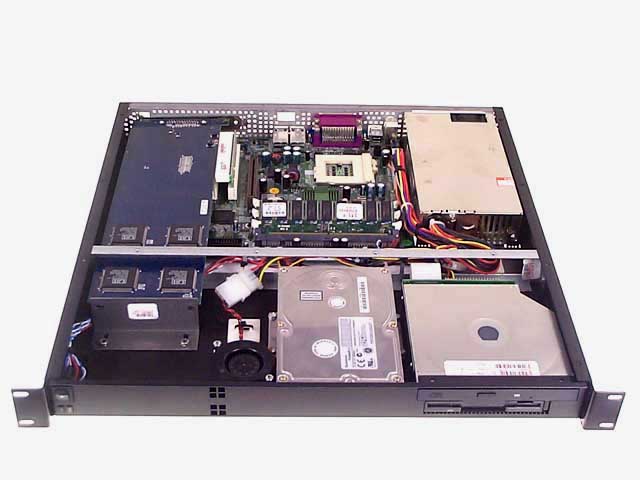

Interior Photo - Front Top

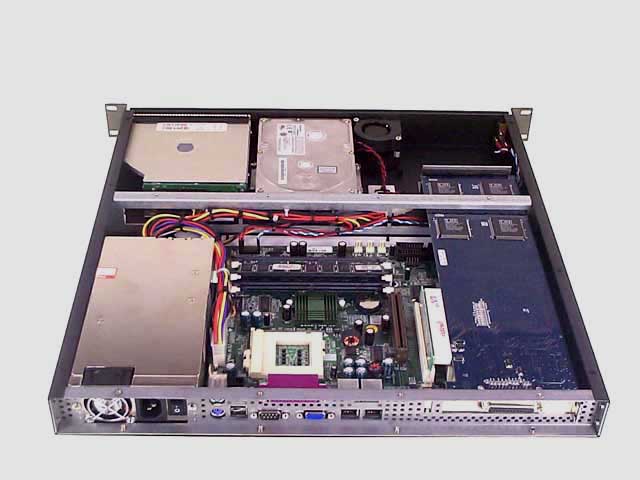

Interior Photo - Rear Top

Interior photos show a full-size ATX motherboard with a full-length PCI card plugged into the optional PCI riser-card. Please note: when a full-length PCI card is installed the second HDD must be omitted. The "FDD-only" option omits CDROM drive and uses a conventional FDD instead of the slim "notebook" style drives.

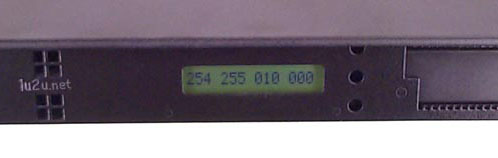

LCD display - close-up

Choices:

• 180W 100,000hr-MTBF power-supply (60011F)
• 230W 100,000hr-MTBF power-supply (60011L)
• 250W 100,000hr-MTBF power-supply (600119)
• 180W 48VDC power-supply (60011N)
• Low-profile P-III CPU cooler for < 1GHZ (900412)
• Low-profile P-III CPU cooler for 1GHZ up (900414)
• Slim-drives mounting kit, less drives (90070V)
• Slim FDD (use with slim CDROM) (100903)
• Slim Teac CDROM (use with slim FDD) (100905)
• Slim Delta CDROM (use with slim FDD) (100483)
• Floppy only(no CD) kit (includes black FDD) (90070Y)
• No FDD, no CDROM (hole filler) (980173)
• Fixed-mount (front only) 1U ear kit (900713)
• Fixed-mount (4-corner) 1U rail kit (90070T)
• Slide mount (4-corner) 1U Ball-bearing kit (90070X)

Options:

• 32-bit riser card (900882)
• 64-bit 5-volt riser card (90079E)
• 64-bit 3.3-volt riser card (90079G)
• LCD readout for TCP/IP addresses (981205)
• Door, full-width, vented (90079R)
